Message List

Overview

MessageList is a Composite Widget that displays a list of messages and effectively manages real-time operations. It includes various types of messages such as Text Messages, Media Messages, Stickers, and more.

MessageList is primarily a list of the base widget MessageBubble. The MessageBubble Widget is utilized to create different types of chat bubbles depending on the message type.

Android
iOS

Usage

Integration

You can launch CometChatMessageList directly using Navigator.push, or you can define it as a widget within the build method of your State class.

1. Using Navigator to Launch `CometChatMessageList`

Dart

Navigator.push(context, MaterialPageRoute(builder: (context) => CometChatMessageList())); // A user or group object is required to launch this widget.

2. Embedding `CometChatMessageList` as a Widget in the build Method

Dart

import 'package:cometchat_chat_uikit/cometchat_chat_uikit.dart';
import 'package:flutter/material.dart';

class MessageList extends StatefulWidget {
  const MessageList({super.key});

  @override
  State<MessageList> createState() => _MessageListState();
}

class _MessageListState extends State<MessageList> {

  @override
  Widget build(BuildContext context) {
    return Scaffold(
        body: SafeArea(
            child: CometChatMessageList() // A user or group object is required to launch this widget.
        )
    );
  }
}

Actions

Actions dictate how a widget functions. They are divided into two types: Predefined and User-defined. You can override either type, allowing you to tailor the behavior of the widget to fit your specific needs.

1. onThreadRepliesClick

onThreadRepliesClick is triggered when you click on the threaded message bubble. The onThreadRepliesClick action doesn't have a predefined behavior. You can override this action using the following code snippet.

Dart

CometChatMessageList(
  user: user, // A user or group object is required to launch this widget.
  onThreadRepliesClick: (message, context, {bubbleView}) {
    // TODO("Not yet implemented")
  },
)

2. onError

You can customize this behavior by using the provided code snippet to override the onError and improve error handling.

Dart

CometChatMessageList(
  user: user, // A user or group object is required to launch this widget.
  onError: (e) {
    // TODO("Not yet implemented")
  },
)

3. onReactionTap

The listener to be set for reacting to a message.Pass a non-null instance of onReactionTap to enable it.

Dart

CometChatMessageList(
  user: user, // A user or group object is required to launch this widget.
  reactionsConfiguration: ReactionsConfiguration(
    onReactionTap: (String? reaction) {
      // TODO("Not yet implemented")
    },
  ),
)

Filters

You can adjust the MessagesRequestBuilder in the MessageList Widget to customize your message list. Numerous options are available to alter the builder to meet your specific needs. For additional details on MessagesRequestBuilder, please visit MessagesRequestBuilder.

In the example below, we are applying a filter to the messages based on a search substring and for a specific user. This means that only messages that contain the search term and are associated with the specified user will be displayed

Dart

CometChatMessageList(
  user: user, // A user or group object is required to launch this widget.
  messagesRequestBuilder: MessagesRequestBuilder()
    ..uid = user.uid
    ..searchKeyword = "searchKeyword"
)

info

The following parameters in messageRequestBuilder will always be altered inside the message list

UID
GUID
types
categories

Events

Events are emitted by a Widget. By using event you can extend existing functionality. Being global events, they can be applied in Multiple Locations and are capable of being Added or Removed.

The MessageList Widget does not emit any events of its own.

Customization

To fit your app's design requirements, you can customize the appearance of the conversation widget. We provide exposed methods that allow you to modify the experience and behavior according to your specific needs.

Style

Using Style you can customize the look and feel of the widget in your app, These parameters typically control elements such as the color, size, shape, and fonts used within the widget.

1. MessageList Style

You can set the messageListStyle to the CometChatMessageList Widget to customize the styling.

Dart

CometChatMessageList(
  user: user, // A user or group object is required to launch this widget.
  messageListStyle: MessageListStyle(
    background: Color(0xFFE4EBF5),
    border: Border.all(width: 3, color: Colors.red),
    borderRadius: 10,
  ),
)

Android
iOS

List of properties exposed by CometChatMessageList

Property	Description	Code
Background	Background inherited from BaseStyles	`background`
Border	Border inherited from BaseStyles	`border`
Border Radius	Border radius inherited from BaseStyles	`borderRadius`
Content Padding	Padding inside the content area	`contentPadding`
Empty Text Style	Text style for the empty state message	`emptyTextStyle: TextStyle?`
Error Text Style	Text style for the error state message	`errorTextStyle: TextStyle?`
Gradient	Gradient inherited from BaseStyles	`gradient`
Height	Height inherited from BaseStyles	`height`
Loading Icon Tint	Tint color for the loading icon	`loadingIconTint: Color?`
Width	Width inherited from BaseStyles	`width`

2. Avatar Style

To apply customized styles to the Avatar widget in the CometChatGroups widget, you can use the following code snippet. For further insights on Avatar Styles refer

Dart

CometChatMessageList(
  user: user, // A user or group object is required to launch this widget.
  avatarStyle: AvatarStyle(
      border: Border.all(width: 5),
      borderRadius: 20,
      background: Colors.red
  ),
)

Functionality

These are a set of small functional customizations that allow you to fine-tune the overall experience of the widget. With these, you can change text, set custom icons, and toggle the visibility of UI elements.

Android
iOS

Dart

CometChatMessageList(
  user: user, // A user or group object is required to launch this widget.
  readIcon: Icon(Icons.mark_chat_read, color: Colors.white),
)

Android
iOS

Below is a list of customizations along with corresponding code snippets

Property	Description	Code
Add Reaction Icon	Icon for adding reactions	`addReactionIcon`
Add Reaction Icon Tap	Callback for when the add reaction icon is tapped	`addReactionIconTap`
Alignment	Alignment for chat messages, default is standard	`alignment: ChatAlignment`
Custom Sound For Message Package	Custom sound package for messages	`customSoundForMessagePackage`
Custom Sound For Messages	Custom sound for messages	`customSoundForMessages`
Date Pattern	Date pattern to be used	`datePattern`
Date Separator Pattern	Date separator pattern to be used	`dateSeparatorPattern`
Delivered Icon	Icon indicating message delivery	`deliveredIcon`
Disable Mentions	Whether mentions are disabled	`disableMentions`
Disable Reactions	Whether reactions are disabled	`disableReactions`
Disable Receipt	Whether message read receipts are disabled	`disableReceipt: bool`
Disable Sound For Messages	Whether sound for messages is disabled	`disableSoundForMessages`
Empty State Text	Text to be displayed in empty state	`emptyStateText`
Error State Text	Text to be displayed in error state	`errorStateText`
Favorite Reactions	List of favorite reactions	`favoriteReactions`
Group	Group object to be displayed	`group`
Hide Error	Whether error messages are hidden	`hideError`
Hide Timestamp	Whether message timestamps are hidden	`hideTimestamp`
New Message Indicator Text	Text for the new message indicator	`newMessageIndicatorText`
Read Icon	Icon indicating message read	`readIcon`
Scroll To Bottom On New Messages	Whether to scroll to bottom on receiving new messages	`scrollToBottomOnNewMessages`
Sent Icon	Icon indicating message sent	`sentIcon`
Show Avatar	Whether to show avatar, default is true	`showAvatar: bool`
Theme	Theme to be applied	`theme`
Timestamp Alignment	Alignment for the message timestamps, default is bottom	`timestampAlignment: TimeAlignment`
User	User object to be displayed	`user`
Wait Icon	Icon indicating waiting state	`waitIcon`

Advance

For advanced-level customization, you can set custom views to the widget. This lets you tailor each aspect of the widget to fit your exact needs and application aesthetics. You can create and define your own widget and then incorporate those into the widget.

Template

CometChatMessageTemplate is a pre-defined structure for creating message views that can be used as a starting point or blueprint for creating message views often known as message bubbles. For more information, you can refer to CometChatMessageTemplate.

You can set message Templates to MessageList by using the following code snippet

Dart

CometChatMessageList(
  user: user, // A user or group object is required to launch this widget.
  templates: Placeholder(); // Replace this placeholder with your custom widget.
)

Example

Here is the complete example for reference:

Dart

getTemplate()
List<CometChatMessageTemplate> getTemplate() {
  // Creating a text template
  CometChatMessageTemplate textTemplate = ChatConfigurator.getDataSource().getTextMessageTemplate(cometChatTheme);
  textTemplate.contentView = (BaseMessage baseMessage, BuildContext buildContext, BubbleAlignment alignment, {AdditionalConfigurations? additionalConfigurations}) {
    return Padding(
      padding: const EdgeInsets.all(8.0),
      child: Text(
        (baseMessage as TextMessage).text,
        style: TextStyle(
          color: alignment == BubbleAlignment.left ? Colors.deepPurple : Colors.yellow,
          fontSize: 14,
          fontWeight: FontWeight.bold,
          fontFamily: "PlaywritePL"
        ),
      ),
    );
  };

  // Creating an audio template
  CometChatMessageTemplate audioTemplate = ChatConfigurator.getDataSource().getAudioMessageTemplate(cometChatTheme);

  // Creating a custom message template
  CometChatMessageTemplate customMessageTemplate = CometChatMessageTemplate(
    type: 'custom_template',
    category: 'custom_category',
    bubbleView: (message, context, alignment) => const Text('this is a custom message template'),
  );

  // custom list of templates
  List<CometChatMessageTemplate> messageTypes = [
    textTemplate,
    audioTemplate,
    customMessageTemplate
  ];

  return messageTypes;
}

Dart

CometChatMessageList(
  user: user, // A user or group object is required to launch this widget.
  templates: getTemplate(),
)

Android
iOS

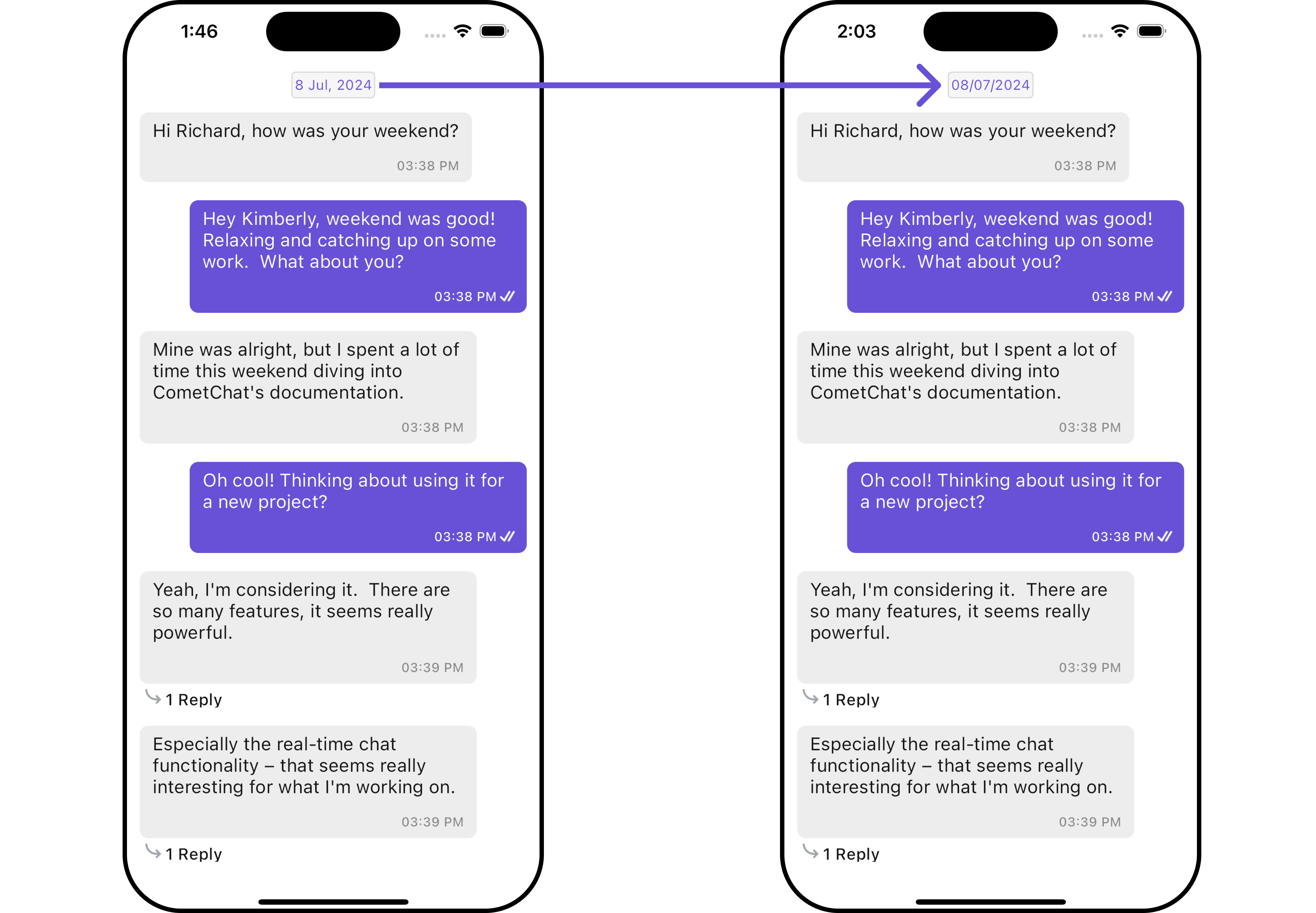

DateSeparatorPattern

You can modify the date pattern of the message list date separator to your requirement using setDateSeparatorPattern(). This method accepts a function with a return type String. Inside the function, you can create your own pattern and return it as a String.

Dart

CometChatMessageList(
  user: user, // A user or group object is required to launch this widget.
  dateSeparatorPattern: (DateTime dateTime) {
    return ""; //Replace this empty string with your custom date time pattern.
  },
)

Example

Here is the complete example for reference:

Dart

CometChatMessageList(
  user: user, // A user or group object is required to launch this widget.
  dateSeparatorPattern: (DateTime dateTime) {
    return DateFormat("dd/MM/yyyy").format(dateTime);
  },
)

Android
iOS

SetDatePattern

You can modify the date pattern to your requirement using .setDatePattern. This method accepts a function with a return type String. Inside the function, you can create your own pattern and return it as a String.

Dart

CometChatMessageList(
  user: user, // A user or group object is required to launch this widget.
  datePattern: (message) {
    return DateFormat('YOUR_PATTERN').format(message.sentAt!);
  },
)

Example

Here is the complete example for reference:

Dart

CometChatMessageList(
  user: user, // A user or group object is required to launch this widget.
  datePattern: (message) {
    return DateFormat('EEE, M/d/y').format(message.sentAt!);
  },
)

Android
iOS

ErrorStateView

You can set a custom ErrorStateView using errorStateView to match the error UI of your app.

Dart

widget
CometChatMessageList(
  user: user, // A user or group object is required to launch this widget.
  errorStateView: (context) {
    return Placeholder(); // Replace this placeholder with your custom widget.
  },
)

Here is the complete example for reference:

Example

Dart

CometChatMessageList(
  user: user, // A user or group object is required to launch this widget.
  errorStateView: (context) {
    return Container(
      width: MediaQuery.of(context).size.width,
      child: Center(
        child: const Column(
          crossAxisAlignment: CrossAxisAlignment.center,
          mainAxisAlignment: MainAxisAlignment.center,
          children: [
            Spacer(),
            Icon(Icons.error_outline, color: Colors.red, size: 100,),
            SizedBox(height: 20,),
            Text("Your Custom Error Message"),
            Spacer(),
          ],
        ),
      ),
    );
  },
)

Android
iOS

LoadingStateView

You can set a custom loader widget using loadingStateView to match the loading UI of your app.

Dart

widget
CometChatMessageList(
  user: user, // A user or group object is required to launch this widget.
  loadingStateView: (context) {
    return Placeholder(); // Replace this placeholder with your custom widget.
  },
)

Here is the complete example for reference:

Example

Dart

main.dart
CometChatMessageList(
  user: user, // A user or group object is required to launch this widget.
  loadingStateView: (context) {
    return Container(
      width: MediaQuery.of(context).size.width,
      child: Center(
          child: CircularProgressIndicator()
      ),
    ); // Replaced the placeholder with a custom widget.
  },
)

Android
iOS

EmptyStateView

You can set a custom EmptyStateView using emptyStateView to match the error widget of your app.

Dart

widget
CometChatMessageList(
  user: user, // A user or group object is required to launch this widget.
  emptyStateView: (context) {
    return Placeholder(); // Replace this placeholder with your custom widget.
  },
)

Here is the complete example for reference:

Example

Dart

main.dart
CometChatMessageList(
  user: user, // A user or group object is required to launch this widget.
  emptyStateView: (context) {
    return Container(
      width: MediaQuery.of(context).size.width,
      child: Center(
          child: const Column(
            crossAxisAlignment: CrossAxisAlignment.center,
            mainAxisAlignment: MainAxisAlignment.center,
            children: [
              Spacer(),
              Icon(Icons.sms_failed_outlined, color: Colors.red, size: 100,),
              SizedBox(height: 20,),
              Text("Your Custom Message"),
              Spacer(),
            ],
          )
      ),
    ); // Replaced the placeholder with a custom widget.
  },
)

TextFormatters

Assigns the list of text formatters. If the provided list is not null, it sets the list. Otherwise, it assigns the default text formatters retrieved from the data source. To configure the existing Mentions look and feel check out MentionsFormatter Guide

Here is the complete example for reference:

Dart

CometChatMessageList(
  user: user, // A user or group object is required to launch this widget.
  textFormatters: [
    CometChatMentionsFormatter(
      messageBubbleTextStyle: (theme, alignment,{forConversation = false}) =>
          TextStyle(
              color: alignment==BubbleAlignment.left? Colors.orange : Colors.pink,
              fontSize: 14,
              fontWeight: FontWeight.bold
          ),
    )
  ],
)

Android
iOS

Configuration

Configurations offer the ability to customize the properties of each widget within a Composite Widget.

MessageInformation

From the MessageList, you can navigate to the MesssageInformation widget as shown in the image.

If you wish to modify the properties of the MesssageInformation Widget, you can use the MessageInformationConfiguration object.

Dart

CometChatMessageList(
    user: user, // A user or group object is required to launch this widget.
    messageInformationConfiguration: MessageInformationConfiguration()
)

Example

Dart

CometChatMessageList(
    user: user, // A user or group object is required to launch this widget.
    messageInformationConfiguration: MessageInformationConfiguration(
        title: "Your Custom Title",
        messageInformationStyle: MessageInformationStyle(
          background: Color(0xFFE4EBF5),
          border: Border.all(width: 1, color: Colors.red),
          titleStyle: TextStyle(color: Colors.red, fontFamily: "PlaywritePL"),
        )
    )
)

Android
iOS

UI Kits

SDKs

Widgets

APIs

Overview​

Usage​

Integration​

1. Using Navigator to Launch CometChatMessageList​

2. Embedding CometChatMessageList as a Widget in the build Method​

Actions​

1. onThreadRepliesClick​

2. onError​

3. onReactionTap​

Filters​

Events​

Customization​

Style​

1. MessageList Style​

2. Avatar Style​

Functionality​

Advance​

Template​

DateSeparatorPattern​

SetDatePattern​

ErrorStateView​

LoadingStateView​

EmptyStateView​

TextFormatters​

Configuration​

MessageInformation​

Overview

Usage

Integration

1. Using Navigator to Launch `CometChatMessageList`

2. Embedding `CometChatMessageList` as a Widget in the build Method

Actions

1. onThreadRepliesClick

2. onError

3. onReactionTap

Filters

Events

Customization

Style

1. MessageList Style

2. Avatar Style

Functionality

Advance

Template

DateSeparatorPattern

SetDatePattern

ErrorStateView

LoadingStateView

EmptyStateView

TextFormatters

Configuration

MessageInformation
