Overview​

The Messages is a Composite Component that manages messages for users and groups.


The Messages component is composed of three individual components, MessageHeader, MessageList, and MessageComposer. In addition, the Messages component also navigates to the Details and ThreadedMessages components.

ComponentsDescription
MessageHeaderCometChatMessageHeader displays the User or Group information using CometChat SDK's User or Group object. It also shows the typing indicator when the user starts typing in MessageComposer.
MessageListCometChatMessageList is one of the core UI components. It displays a list of messages and handles real-time operations.
MessageComposerCometChatMessageComposer is an independent and critical component that allows users to compose and send various types of messages includes text, image, video and custom messages.
DetailsCometChatDetails is a component that displays all the available options available for Users & Groups
ThreadedMessagesCometChatThreadedMessages is a component that displays all replies made to a particular message in a conversation.

Usage​

Integration​

The following code snippet illustrates how you can directly incorporate the Messages component.

import { CUSTOM_ELEMENTS_SCHEMA, NgModule } from '@angular/core';
import { BrowserModule } from '@angular/platform-browser';
import { CometChatMessages } from '@cometchat/chat-uikit-angular';
import { AppComponent } from './app.component';

@NgModule({
  imports: [
    BrowserModule,
    CometChatMessages
  ],
  declarations: [AppComponent],
  providers: [],
  bootstrap: [AppComponent],
  schemas: [CUSTOM_ELEMENTS_SCHEMA]
})
export class AppModule { }

Actions​

Actions dictate how a component functions. They are divided into two types: Predefined and User-defined. You can override either type, allowing you to tailor the behavior of the component to fit your specific needs.

The Messages component does not have its actions. However, since it's a Composite Component, you can use the actions of its components by utilizing the Configurations object of each component.

Example

In this example, we are employing the onThreadRepliesClick action from the MessageList Component through the MessageListConfiguration object.

import { Component, OnInit } from '@angular/core';
import {  CometChatThemeService, CometChatUIKit } from '@cometchat/chat-uikit-angular';
import { MessageListConfiguration } from '@cometchat/uikit-shared';
import "@cometchat/uikit-elements";

@Component({
  selector: 'app-root',
  templateUrl: './app.component.html',
  styleUrls: ['./app.component.css']
})
export class AppComponent implements OnInit{

  ngOnInit(): void {
    CometChat.getUser("uid").then((user:CometChat.User)=>{
      this.userObject=user;
    });
  }

  public userObject!: CometChat.User;

  constructor(private themeService:CometChatThemeService) {
    themeService.theme.palette.setMode("light")
    themeService.theme.palette.setPrimary({ light: "#6851D6", dark: "#6851D6" })
  }

  public handleOnThreadRepliesClick = ()=>{
    console.log("your custom on thread replies click");
  };

  public messageListConfiguration = new MessageListConfiguration({
    onThreadRepliesClick:this.handleOnThreadRepliesClick
  });


  onLogin(UID?: any) {
    CometChatUIKit.login({ uid: UID }).then(
      (user) => {
        setTimeout(() => {
          window.location.reload();
        }, 1000);
      },
      (error) => {
        console.log("Login failed with exception:", { error });
      }
    );
  }
}

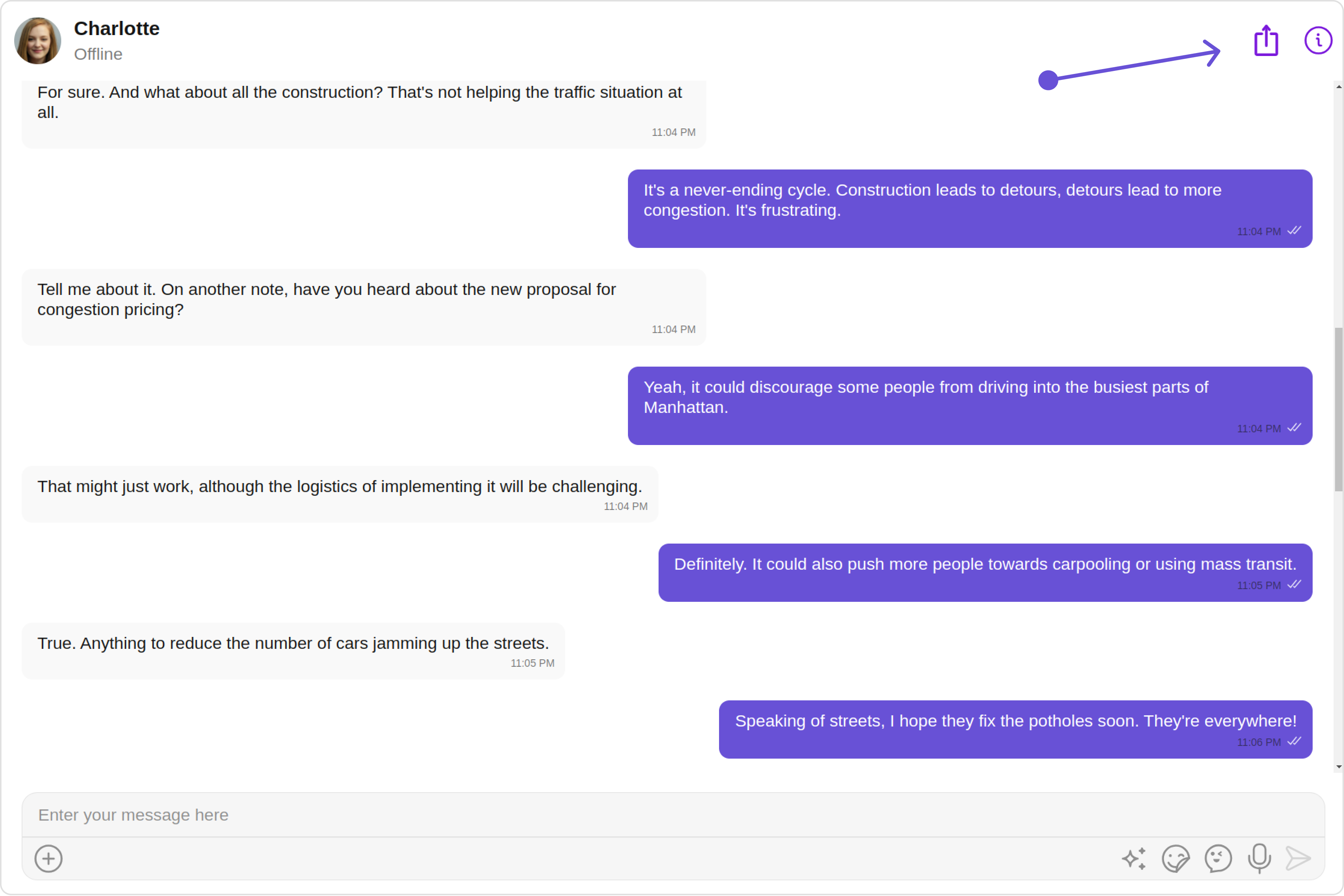

On thread replies click:

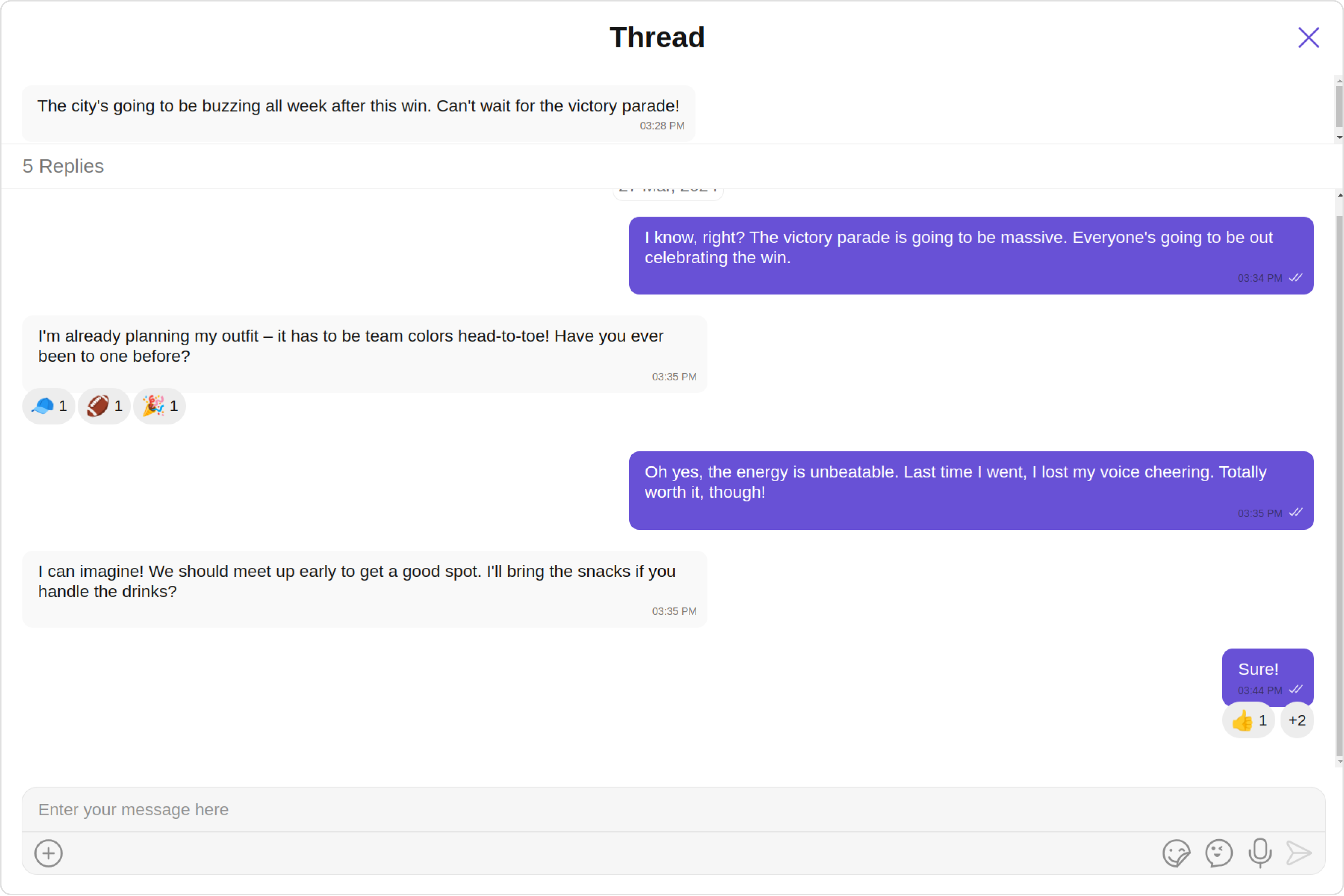

Thread Screen:


The Messages Component overrides the onThreadRepliesClick action to navigate to the ThreadedMessages component. If you override onThreadRepliesClick, it will also override the default behavior of the Messages Component.

Filters​

Filters allow you to customize the data displayed in a list within a Component. You can filter the list based on your specific criteria, allowing for a more customized. Filters can be applied using RequestBuilders of ChatSDK.

The Messages component does not have its filters. But as it is a Composite Component, you can use the filters of its components by using the Configurations object of each component. For more details on the filters of its components, please refer to MessageList Filters.

Example

In this example, we're applying the MessageList Component filter to the Messages Component using MessageListConfiguration.

import { CometChat } from '@cometchat/chat-sdk-javascript';
import { Component, OnInit } from '@angular/core';
import {  CometChatThemeService, CometChatUIKit } from '@cometchat/chat-uikit-angular';
import { MessageListConfiguration } from '@cometchat/uikit-shared';
import "@cometchat/uikit-elements";

@Component({
  selector: 'app-root',
  templateUrl: './app.component.html',
  styleUrls: ['./app.component.css']
})
export class AppComponent implements OnInit{

  ngOnInit(): void {
    CometChat.getUser("uid").then((user:CometChat.User)=>{
      this.userObject=user;
    });
  }

  public userObject!: CometChat.User;

  constructor(private themeService:CometChatThemeService) {
    themeService.theme.palette.setMode("light")
    themeService.theme.palette.setPrimary({ light: "#6851D6", dark: "#6851D6" })
  }

  public messageListConfiguration = new MessageListConfiguration({
    messagesRequestBuilder:new CometChat.MessagesRequestBuilder().setSearchKeyword("Your Search Keyword").setLimit(10)
  });


  onLogin(UID?: any) {
    CometChatUIKit.login({ uid: UID }).then(
      (user) => {
        setTimeout(() => {
          window.location.reload();
        }, 1000);
      },
      (error) => {
        console.log("Login failed with exception:", { error });
      }
    );
  }
}

Events​

Events are emitted by a Component. By using event you can extend existing functionality. Being global events, they can be applied in Multiple Locations and are capable of being Added or Removed.

The Messages component does not produce any events directly.

Customization​

To fit your app's design requirements, you can customize the appearance of the Messages component. We provide exposed methods that allow you to modify the experience and behavior according to your specific needs.

Style​

Using Style you can customize the look and feel of the component in your app, These parameters typically control elements such as the color, size, shape, and fonts used within the component.

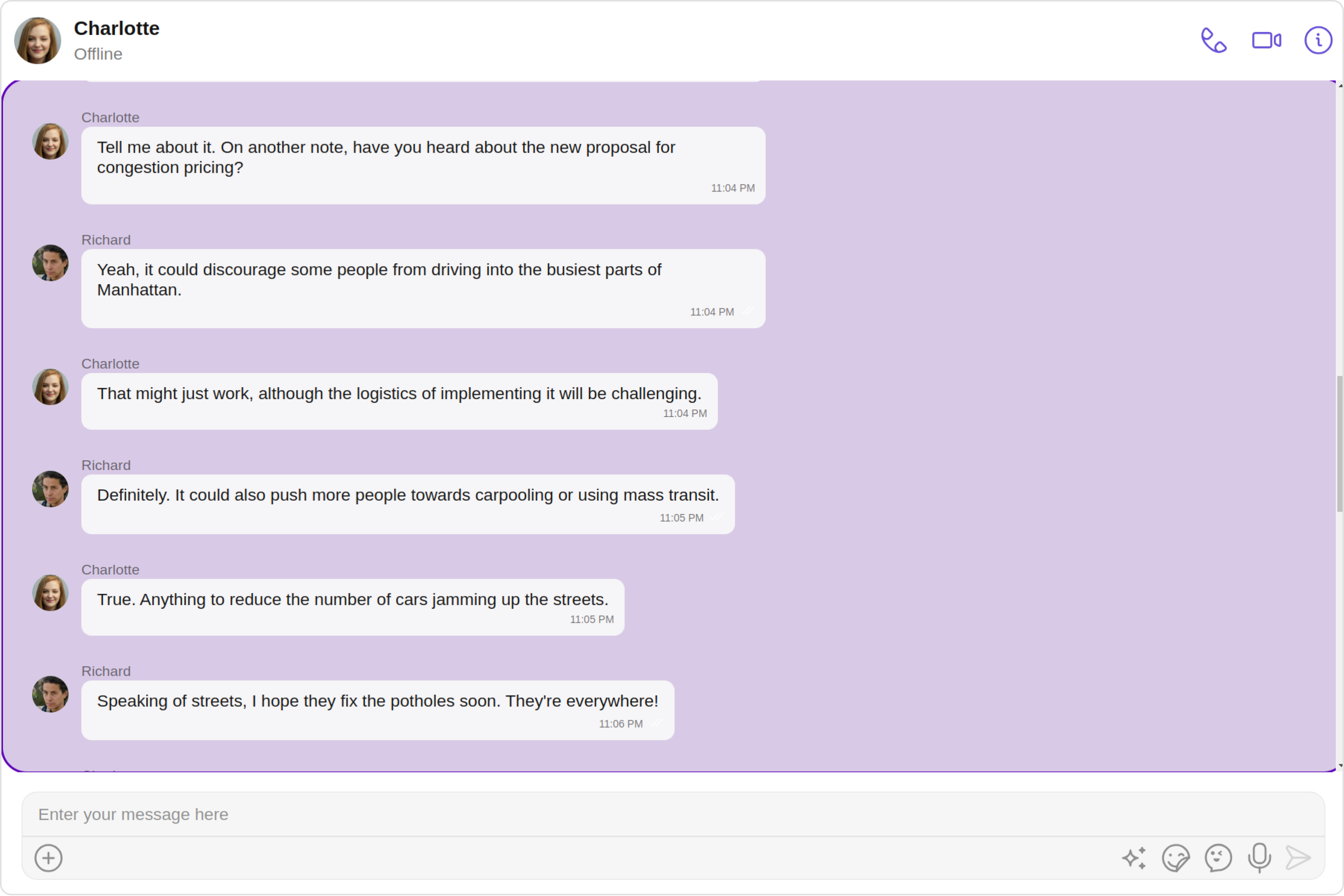

1. Messages Style​

You can customize the appearance of the Messages Component by applying the MessagesStyle to it using the following code snippet.

import { CometChat } from '@cometchat/chat-sdk-javascript';
import { Component, OnInit } from '@angular/core';
import {  CometChatThemeService, CometChatUIKit } from '@cometchat/chat-uikit-angular';
import { MessageListConfiguration, MessagesStyle } from '@cometchat/uikit-shared';
import "@cometchat/uikit-elements";

@Component({
  selector: 'app-root',
  templateUrl: './app.component.html',
  styleUrls: ['./app.component.css']
})
export class AppComponent implements OnInit{

  ngOnInit(): void {
    CometChat.getUser("uid").then((user:CometChat.User)=>{
      this.userObject=user;
    });
  }

  public userObject!: CometChat.User;

  constructor(private themeService:CometChatThemeService) {
    themeService.theme.palette.setMode("light")
    themeService.theme.palette.setPrimary({ light: "#6851D6", dark: "#6851D6" })
  }
  messagesStyle = new MessagesStyle({
    background: "#7E57C2",
    border:'2px solid #ee7752',
    borderRadius:'12px'
  });

  onLogin(UID?: any) {
    CometChatUIKit.login({ uid: UID }).then(
      (user) => {
        setTimeout(() => {
          window.location.reload();
        }, 1000);
      },
      (error) => {
        console.log("Login failed with exception:", { error });
      }
    );
  }
}

List of properties exposed by MessagesStyle

PropertyDescriptionCode
backgroundSets all background style properties at once, such as color, image, origin and size, or repeat method.background:"sting",
borderSets the border of the componentborder:"string"
borderRadiusSets the border radius of the componentborderRadius:"string"
heightSets the height of the componentheight:"string"
widthSets the width of the componentwidth:"string"
2. Component's Styles​

Being a Composite component, the Messages Component allows you to customize the styles of its components using their respective Configuration objects.

For a list of all available properties, refer to each component's styling documentation: MesssageHeader Styles, MessageList Styles, MessageComposer Styles, Details Styles, ThreadMessages Styles.

Example

In this example, we are creating MessageListStyle and MessageComposerStyle and then applying them to the Messages Component using MessageListConfiguration and MessageComposerConfiguration.

import { CometChat } from '@cometchat/chat-sdk-javascript';
import { Component, OnInit } from '@angular/core';
import {  CometChatThemeService, CometChatUIKit } from '@cometchat/chat-uikit-angular';
import { MessageListConfiguration, MessageComposerConfiguration, MessageListStyle, MessageComposerStyle } from '@cometchat/uikit-shared';
import "@cometchat/uikit-elements";

@Component({
  selector: 'app-root',
  templateUrl: './app.component.html',
  styleUrls: ['./app.component.css']
})
export class AppComponent implements OnInit{

  ngOnInit(): void {
    CometChat.getUser("uid").then((user:CometChat.User)=>{
      this.userObject=user;
    });
  }

  public userObject!: CometChat.User;

  constructor(private themeService:CometChatThemeService) {
    themeService.theme.palette.setMode("light")
    themeService.theme.palette.setPrimary({ light: "#6851D6", dark: "#6851D6" })
  }

  public messageListConfiguration = new MessageListConfiguration({
    messageListStyle: new MessageListStyle({
      background: "transparent",
      border: "1px solid black",
      borderRadius: "20px",
      height: "100%",
      width: "100%",
      loadingIconTint: "red",
      nameTextColor: "pink",
      threadReplyTextColor: "green"
    })
  });

  public messageComposerConfiguration = new MessageComposerConfiguration({
    messageComposerStyle: new MessageComposerStyle({
      AIIconTint: "#ec03fc",
      attachIcontint: "#ec03fc",
      background: "#fffcff",
      border: "2px solid #b30fff",
      borderRadius: "20px",
      inputBackground: "#e2d5e8",
      textColor: "#ff299b",
      sendIconTint: "#ff0088",
    })
  });

  onLogin(UID?: any) {
    CometChatUIKit.login({ uid: UID }).then(
      (user) => {
        setTimeout(() => {
          window.location.reload();
        }, 1000);
      },
      (error) => {
        console.log("Login failed with exception:", { error });
      }
    );
  }
}

Functionality​

These are a set of small functional customizations that allow you to fine-tune the overall experience of the component. With these, you can change text, set custom icons, and toggle the visibility of UI elements.

import { CometChat } from '@cometchat/chat-sdk-javascript';
import { Component, OnInit } from '@angular/core';
import {  CometChatThemeService, CometChatUIKit } from '@cometchat/chat-uikit-angular';
import "@cometchat/uikit-elements";

@Component({
  selector: 'app-root',
  templateUrl: './app.component.html',
  styleUrls: ['./app.component.css']
})
export class AppComponent implements OnInit{

  ngOnInit(): void {
    CometChat.getUser("uid").then((user:CometChat.User)=>{
      this.userObject=user;
    });
  }

  public userObject!: CometChat.User;

  constructor(private themeService:CometChatThemeService) {
    themeService.theme.palette.setMode("light")
    themeService.theme.palette.setPrimary({ light: "#6851D6", dark: "#6851D6" })
  }
  hideDetails = true;
  disableTyping = true;

  onLogin(UID?: any) {
    CometChatUIKit.login({ uid: UID }).then(
      (user) => {
        setTimeout(() => {
          window.location.reload();
        }, 1000);
      },
      (error) => {
        console.log("Login failed with exception:", { error });
      }
    );
  }
}

Below is a list of customizations along with corresponding code snippets

PropertyDescriptionCode
User report Used to pass user object of which header specific details will be shown[user]="userObject"
Group report Used to pass group object of which header specific details will be shown[group]="groupObject"
Hide MessageComposerUsed to toggle visibility for CometChatMessageComposer, default falsehideMessageComposer=true
Hide MessageHeaderUsed to toggle visibility for CometChatMessageHeader, default falsehideMessageHeader=true
Disable TypingUsed to toggle functionality for showing typing indicator and also enable/disable sending message delivery/read receiptsdisableTyping=true
Disable SoundForMessagesUsed to toggle sound for messagesdisableSoundForMessages=true
CustomSoundForIncomingMessagesUsed to set custom sound asset's path for incoming messagescustomSoundForIncomingMessages="your custom sound for incoming call"
CustomSoundForOutgoingMessagesUsed to set custom sound asset's path for outgoing messagescustomSoundForOutgoingMessages="your custom sound for outgoing call"
Hide DetailsUsed to toggle visibility for details icon in CometChatMessageHeaderhideDetails=true

Advanced​

For advanced-level customization, you can set custom views to the component. This lets you tailor each aspect of the component to fit your exact needs and application aesthetics. You can create and define your views, layouts, and UI elements and then incorporate those into the component.

MessageHeaderView​

You can set your custom message header view using the messageHeaderView property. But keep in mind, by using this you will override the default message header functionality.

Example

Default


Custom

import { CometChat } from '@cometchat/chat-sdk-javascript';
import { Component, OnInit } from '@angular/core';
import {  CometChatThemeService, CometChatUIKit } from '@cometchat/chat-uikit-angular';
import "@cometchat/uikit-elements";

@Component({
  selector: 'app-root',
  templateUrl: './app.component.html',
  styleUrls: ['./app.component.css']
})
export class AppComponent implements OnInit{

  ngOnInit(): void {
    CometChat.getUser("uid").then((user:CometChat.User)=>{
      this.userObject=user;
    });
  }

  public userObject!: CometChat.User;

  constructor(private themeService:CometChatThemeService) {
    themeService.theme.palette.setMode("light")
    themeService.theme.palette.setPrimary({ light: "#6851D6", dark: "#6851D6" })
  }

  onLogin(UID?: any) {
    CometChatUIKit.login({ uid: UID }).then(
      (user) => {
        setTimeout(() => {
          window.location.reload();
        }, 1000);
      },
      (error) => {
        console.log("Login failed with exception:", { error });
      }
    );
  }
}

MessageListView​

You can set your custom message list view using the messageListView property. But keep in mind, by using this you will override the default message ListView functionality.

Example

Default


Custom

import { CometChat } from '@cometchat/chat-sdk-javascript';
import { Component, OnInit } from '@angular/core';
import {  CometChatThemeService, CometChatUIKit } from '@cometchat/chat-uikit-angular';
import { MessageListStyle } from '@cometchat/uikit-shared';
import { MessageListAlignment } from '@cometchat/uikit-resources';

import "@cometchat/uikit-elements";

@Component({
  selector: 'app-root',
  templateUrl: './app.component.html',
  styleUrls: ['./app.component.css']
})
export class AppComponent implements OnInit{

  ngOnInit(): void {
    CometChat.getUser("uid").then((user:CometChat.User)=>{
      this.userObject=user;
    });
  }

  public userObject!: CometChat.User;
  messageListStyle = new MessageListStyle({
    background: "#fdf2ff",
    border: "1px solid #d608ff",
    borderRadius: "20px",
    loadingIconTint: "red",
    nameTextColor: "pink",
    threadReplyTextColor: "green"
  });
  alignment = MessageListAlignment.left;

  constructor(private themeService:CometChatThemeService) {
    themeService.theme.palette.setMode("light")
    themeService.theme.palette.setPrimary({ light: "#6851D6", dark: "#6851D6" })
  }

  onLogin(UID?: any) {
    CometChatUIKit.login({ uid: UID }).then(
      (user) => {
        setTimeout(() => {
          window.location.reload();
        }, 1000);
      },
      (error) => {
        console.log("Login failed with exception:", { error });
      }
    );
  }
}

MessageComposerView​

You can set your custom Message Composer view using the messageComposerView property. But keep in mind, by using this you will override the default message composer functionality.

Example

Default


Custom

import { CometChat } from '@cometchat/chat-sdk-javascript';
import { Component, OnInit } from '@angular/core';
import {  CometChatThemeService, CometChatUIKit } from '@cometchat/chat-uikit-angular';
import { MessageComposerStyle } from '@cometchat/uikit-shared';
import { AuxiliaryButtonAlignment } from '@cometchat/uikit-resources';

import "@cometchat/uikit-elements";

@Component({
  selector: 'app-root',
  templateUrl: './app.component.html',
  styleUrls: ['./app.component.css']
})
export class AppComponent implements OnInit{

  ngOnInit(): void {
    CometChat.getUser("uid").then((user:CometChat.User)=>{
      this.userObject=user;
    });
  }

  public userObject!: CometChat.User;
  messageComposerStyle = new MessageComposerStyle({
    AIIconTint:"#ec03fc",
    attachIcontint:"#ec03fc",
    background:"#fffcff",
    border:"2px solid #b30fff",
    borderRadius:"20px",
    inputBackground:"#e2d5e8",
    textColor:"#ff299b",
    sendIconTint:"#ff0088",
  });
  auxiliaryButtonAlignment = AuxiliaryButtonAlignment.left;

  constructor(private themeService:CometChatThemeService) {
    themeService.theme.palette.setMode("light")
    themeService.theme.palette.setPrimary({ light: "#6851D6", dark: "#6851D6" })
  }

  onLogin(UID?: any) {
    CometChatUIKit.login({ uid: UID }).then(
      (user) => {
        setTimeout(() => {
          window.location.reload();
        }, 1000);
      },
      (error) => {
        console.log("Login failed with exception:", { error });
      }
    );
  }
}

AuxiliaryMenu​

You can set a custom header menu option by using the auxiliaryMenu property.

Example

Default


Custom

import { CometChat } from '@cometchat/chat-sdk-javascript';
import { Component, OnInit } from '@angular/core';
import {  CometChatThemeService, CometChatUIKit, IconStyle } from '@cometchat/chat-uikit-angular';
import "@cometchat/uikit-elements";

@Component({
  selector: 'app-root',
  templateUrl: './app.component.html',
  styleUrls: ['./app.component.css']
})
export class AppComponent implements OnInit{

  ngOnInit(): void {
    CometChat.getUser("uid").then((user:CometChat.User)=>{
      this.userObject=user;
    });
  }

  public userObject!: CometChat.User;
  auxiliaryButtonURL = 'Your custom icon url';

  getIconStyle = new IconStyle({
    iconTint:"#d400ff",
  });
  constructor(private themeService:CometChatThemeService) {
    themeService.theme.palette.setMode("light")
    themeService.theme.palette.setPrimary({ light: "#6851D6", dark: "#6851D6" })
  }

  onLogin(UID?: any) {
    CometChatUIKit.login({ uid: UID }).then(
      (user) => {
        setTimeout(() => {
          window.location.reload();
        }, 1000);
      },
      (error) => {
        console.log("Login failed with exception:", { error });
      }
    );
  }
}

Configuration​

Configurations offer the ability to customize the properties of each individual component within a Composite Component.

The Messages Component is a Composite Component and it has a specific set of configuration for each of its components.

MessageHeader​

If you want to customize the properties of the MessageHeader Component inside Messages Component, you need use the MessageHeaderConfiguration object.

The MessageHeaderConfiguration provides access to all the Action, Filters, Styles, Functionality, and Advanced properties of the MessageHeader component.

Please note that the properties marked with the report symbol are not accessible within the Configuration Object.

Example


In this example, we will style the Avatar and MessageHeader of the MessageHeader component using MessageHeaderConfiguration.

import { CometChat } from '@cometchat/chat-sdk-javascript';
import { Component, OnInit } from '@angular/core';
import {  CometChatThemeService, CometChatUIKit, AvatarStyle } from '@cometchat/chat-uikit-angular';
import { MessageHeaderConfiguration, MessageHeaderStyle } from '@cometchat/uikit-shared';
import "@cometchat/uikit-elements";

@Component({
  selector: 'app-root',
  templateUrl: './app.component.html',
  styleUrls: ['./app.component.css']
})
export class AppComponent implements OnInit{

  ngOnInit(): void {
    CometChat.getUser("uid").then((user:CometChat.User)=>{
      this.userObject=user;
    });
  }

  public userObject!: CometChat.User;
  public messageHeaderConfiguration = new MessageHeaderConfiguration({
    avatarStyle: this.avatarStyle,
    messageHeaderStyle: this.messageHeaderStyle
  });
  avatarStyle = new AvatarStyle({
    backgroundColor:"#cdc2ff",
    border:"2px solid #6745ff",
    borderRadius:"10px",
    outerViewBorderColor:"#ca45ff",
    outerViewBorderRadius:"5px",
    nameTextColor:"#4554ff"
  });

  messageHeaderStyle = new MessageHeaderStyle({
    background:"#f2f3ff",
    border:"2px solid #a117eb",
    borderRadius:"20px",
    subtitleTextColor:"#2d55a6"
  });
  constructor(private themeService:CometChatThemeService) {
    themeService.theme.palette.setMode("light")
    themeService.theme.palette.setPrimary({ light: "#6851D6", dark: "#6851D6" })
  }

  onLogin(UID?: any) {
    CometChatUIKit.login({ uid: UID }).then(
      (user) => {
        setTimeout(() => {
          window.location.reload();
        }, 1000);
      },
      (error) => {
        console.log("Login failed with exception:", { error });
      }
    );
  }
}

MessageList​

If you want to customize the properties of the MessageList Component inside Messages Component, you need use the MessageListConfiguration object.

The MessageListConfiguration provides access to all the Action, Filters, Styles, Functionality, and Advanced properties of the MessageList component.

Please note that the properties marked with the report symbol are not accessible within the Configuration Object.

Example


In this example, we will be changing the list alignment and modifying the message list styles in the MessageList component using MessageListConfiguration.

import { CometChat } from '@cometchat/chat-sdk-javascript';
import { Component, OnInit } from '@angular/core';
import {  CometChatThemeService, CometChatUIKit, AvatarStyle } from '@cometchat/chat-uikit-angular';
import { MessageListConfiguration, MessageListStyle } from '@cometchat/uikit-shared';
import { MessageListAlignment } from '@cometchat/uikit-resources';
import "@cometchat/uikit-elements";

@Component({
  selector: 'app-root',
  templateUrl: './app.component.html',
  styleUrls: ['./app.component.css']
})
export class AppComponent implements OnInit{

  ngOnInit(): void {
    CometChat.getUser("uid").then((user:CometChat.User)=>{
      this.userObject=user;
    });
  }

  public userObject!: CometChat.User;
  public messageListConfiguration = new MessageListConfiguration({
    messageListStyle: new MessageListStyle({
      background:"#d8cae6",
        border:"2px solid #6107ba",
        borderRadius:"20px",
        loadingIconTint:"red",
        nameTextColor:"pink",
        threadReplyTextColor:"green"
    }),
    alignment: MessageListAlignment.left
  });
  constructor(private themeService:CometChatThemeService) {
    themeService.theme.palette.setMode("light")
    themeService.theme.palette.setPrimary({ light: "#6851D6", dark: "#6851D6" })
  }

  onLogin(UID?: any) {
    CometChatUIKit.login({ uid: UID }).then(
      (user) => {
        setTimeout(() => {
          window.location.reload();
        }, 1000);
      },
      (error) => {
        console.log("Login failed with exception:", { error });
      }
    );
  }
}

MessageComposer​

If you want to customize the properties of the MessageComposer Component inside Messages Component, you need use the MessageComposerConfiguration object.

The MessageComposerConfiguration provides access to all the Action, Filters, Styles, Functionality, and Advanced properties of the MessageComposer component.

Please note that the properties marked with the report symbol are not accessible within the Configuration Object.

Example


In this example, we'll be adding styling to the message composer and custom text to the MessageComposer component using MessageComposerConfiguration.

import { CometChat } from '@cometchat/chat-sdk-javascript';
import { Component, OnInit } from '@angular/core';
import {  CometChatThemeService, CometChatUIKit } from '@cometchat/chat-uikit-angular';
import { MessageComposerConfiguration, MessageComposerStyle } from '@cometchat/uikit-shared';
import "@cometchat/uikit-elements";

@Component({
  selector: 'app-root',
  templateUrl: './app.component.html',
  styleUrls: ['./app.component.css']
})
export class AppComponent implements OnInit{

  ngOnInit(): void {
    CometChat.getUser("uid").then((user:CometChat.User)=>{
      this.userObject=user;
    });
  }

  public userObject!: CometChat.User;
  public messageComposerConfiguration = new MessageComposerConfiguration({
    text:'Your Custom Text',

    messageComposerStyle: new MessageComposerStyle({
      AIIconTint: "#ec03fc",
      attachIcontint: "#ec03fc",
      background: "#fffcff",
      border: "2px solid #b30fff",
      borderRadius: "20px",
      inputBackground: "#e2d5e8",
      textColor: "#ff299b",
      sendIconTint: "#ff0088",
    })
  });
  constructor(private themeService:CometChatThemeService) {
    themeService.theme.palette.setMode("light")
    themeService.theme.palette.setPrimary({ light: "#6851D6", dark: "#6851D6" })
  }

  onLogin(UID?: any) {
    CometChatUIKit.login({ uid: UID }).then(
      (user) => {
        setTimeout(() => {
          window.location.reload();
        }, 1000);
      },
      (error) => {
        console.log("Login failed with exception:", { error });
      }
    );
  }
}

ThreadedMessages​

If you want to customize the properties of the ThreadedMessages Component inside Messages Component, you need use the ThreadedMessagesConfiguration object.

The ThreadedMessagesConfiguration provides access to all the Action, Filters, Styles, Functionality, and Advanced properties of the ThreadedMessages component.

Please note that the properties marked with the report symbol are not accessible within the Configuration Object.

Example


In this example, we are adding a custom close icon to the Threaded Message component and also adding custom properties to the MessageList using MessageListConfiguration. We then apply these changes to the ThreadedMessages component using ThreadedMessagesConfiguration.

import { CometChat } from '@cometchat/chat-sdk-javascript';
import { Component, OnInit } from '@angular/core';
import {  CometChatThemeService, CometChatUIKit } from '@cometchat/chat-uikit-angular';
import { ThreadedMessagesConfiguration, MessageListConfiguration, MessageListStyle } from '@cometchat/uikit-shared';
import { MessageListAlignment } from '@cometchat/uikit-resources';
import "@cometchat/uikit-elements";

@Component({
  selector: 'app-root',
  templateUrl: './app.component.html',
  styleUrls: ['./app.component.css']
})
export class AppComponent implements OnInit{

  ngOnInit(): void {
    CometChat.getUser("uid").then((user:CometChat.User)=>{
      this.userObject=user;
    });
  }

  public userObject!: CometChat.User;
  public threadedMessageConfiguration = new ThreadedMessagesConfiguration({
    closeIconURL: 'close Icon',
    messageListConfiguration: new MessageListConfiguration({
      messageListStyle: new MessageListStyle({
          background:"#d8cae6",
          border:"2px solid #6107ba",
          borderRadius:"20px",
          loadingIconTint:"red",
          nameTextColor:"pink",
          threadReplyTextColor:"green"
      }),
      alignment:MessageListAlignment.left
    })
  });
  constructor(private themeService:CometChatThemeService) {
    themeService.theme.palette.setMode("light")
    themeService.theme.palette.setPrimary({ light: "#6851D6", dark: "#6851D6" })
  }

  onLogin(UID?: any) {
    CometChatUIKit.login({ uid: UID }).then(
      (user) => {
        setTimeout(() => {
          window.location.reload();
        }, 1000);
      },
      (error) => {
        console.log("Login failed with exception:", { error });
      }
    );
  }
}
